Sack filters for mechanical cleaning

 1. CINTROPUR® sack filters



     Belgian manufacturer CINTROPUR® is known for its high quality products. This is why semi-industrial and industrial water purification filters will serve you for a very long time.   Filters made of high quality synthetic materials are successfully used in residential buildings, manufacturing plants, agriculture and other areas where water has to be purified mechanically.



     CINTROPUR® water purification filters use centrifugal force for filtration, so that unnecessary particles are separated and collected at the bottom of the filter.



CINTROPUR® mechanical filters remove solid particles of soil, sand, etc. from the water. These filters are installed at the beginning of the entire purification system so that water can flow into the following filters without any mechanical impurities.



Applications:

  • NDUSTRY: protection of equipment and plumbing.
  • AGRICULTURE: filtration of water intended for irrigation and animals; filtration of rainwater and water from wells.
  • SERVICES SECTOR(рotels and кestaurants) AND INSTITUTIONS (schools, administrative buildings, etc.): protection of sanitary ware and household appliances.

CINTROPUR® (TE) filter models have a special device for use with other water treatment solutions, for example:

  • POLYFOSPHATES, SILICATES AND SILICONPOLYFOSPHATES: These products soften water and protect equipment from rust (effective up to 60 °C).
  • ACTIVATED CINTROPUR SCIN: activated carbon is supplied separately. It improves the taste of water, removes odour, and removes chlorine, ozone, pesticides and other organic pollutants.





Advantages of CINTROPUR® water filters:

  • High and steady water flow;
  • Filtration thanks to eccentric force;
  • Robust and robust housing;
  • Fast and simple water discharge;
  • Filter monitoring via transparent housing;
  • Filters are ecological;
  • Good price.

Accessories: monometer (2 pcs.), drain cock, key.











Technical data



NW 280

NW 340

NW 400

NW 500

NW 650

NW 800

NW 500 TE

Connection diameter, inches

1“

1 ¼“

1 ½“

2“

2 ½“

3“

2“

Average water consumption, m3/h

7

10

12

18

25

32

2

Water pressure, bar

10

10

10

10

10

10

10

Max.water pressure, bar

16

16

16

16

16

16

16

Max.water temperature, °C

50

50

50

50

50

50

50

Weight, kg

2,2

2,7

2,9

6,4

7

7,4

5,6

Standard bag, µm

25

25

25

25

25

25

-

Bowl volume, l

-

-

-

-

-

-

4,85

Filtering surface, cm2

530

770

1010

1288

1288

1288

-

Dimensions (H x W x D), mm

373x284

474x284

576x284

632x443

632x304

632x313

632x443







Consumables:



  1. Activated charcoal. Feature CINTROPUR® SCIN for bowls NW 500TE, NW 650TE, NW 800TE: 4.85 l.
  2. Filtration bags (Packaging 5 pcs.) Unflushing: 1µm / 5µm / 10µm / 25µm / 50µm / 100µm. Flushing : 150µm / 300µm





Download brochure



Consumables









CINTROPUR filter bags





Description

Size of held particles
, µ

Quantity included, pcs.

Filter bag CINTROPUR NW-32

designed for housing Cintropur NW-25

5; 10; 25; 50; 100; 150; 300

5

Filter bag CINTROPUR NW-32

designed for housing CINTROPUR NW-32

5; 10; 25; 50; 100; 150; 300

5

Filter bag CINTROPUR  NW-500-650-800

designed for housing CINTROPUR NW-500-650-800

5; 10; 25; 50; 100; 150; 300

5



2.  Big Blue filters of PBH series



PBH (Pentek) bag filters consist of a lightweight, non-corrosive container and a bag filter element. The filters can be used for filtration of water, acids, aggressive chemical and food products. PBH series filters have a pressure gauge, a drain cock and nozzles for drainage and weathering.








Мodel

PBH-410



PBH-420



Connection diameter, inches

1“; 1½“

1“; 1½“

Maximum debit, l/min

76

149

Maximum pressure, bar

6,9

6,9

Filter height, inches

10“

20“

Temperature range, °C

+5 – +37

+5 – +37

imensions (H x W x D), mm

340 x 183 x 183

600 x 183 x 183





Consumables

Bag filters for PENTEK PBH series







Description

Material

Size of hold particles, µ

Quantity included, pcs.

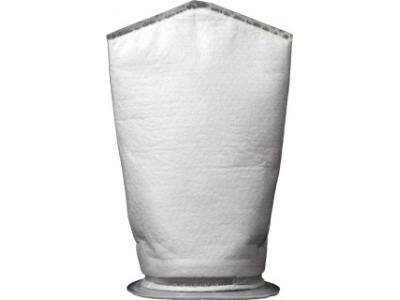

Bag filter

 BP-410

designed for housings  PENTEK PBH-410

Polypropylene

5; 10; 25; 50; 100; 150; 300

5

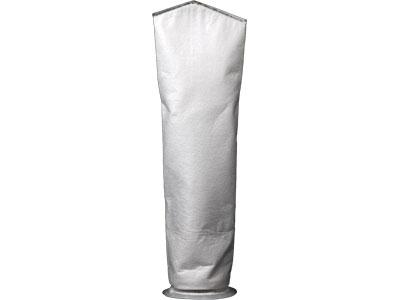

Bag filter

 BP-420

предназначен для корпусов PENTEK PBH-410

Polypropylene

5; 10; 25; 50; 100; 150; 300

5
